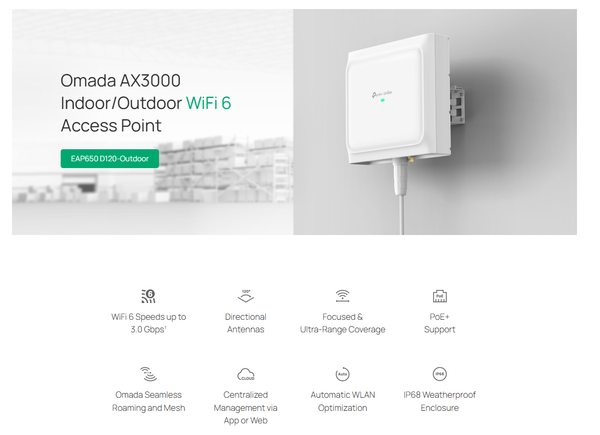

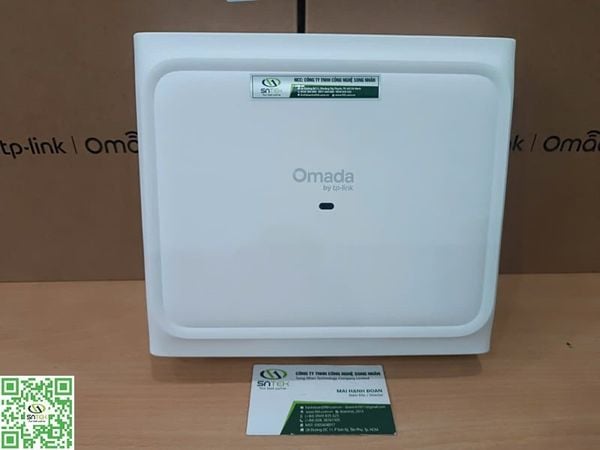

BỘ PHÁT WIFI 6 TP-LINK OMADA EAP650 D120-OUTDOOR

TÍNH NĂNG PHẦN CỨNG

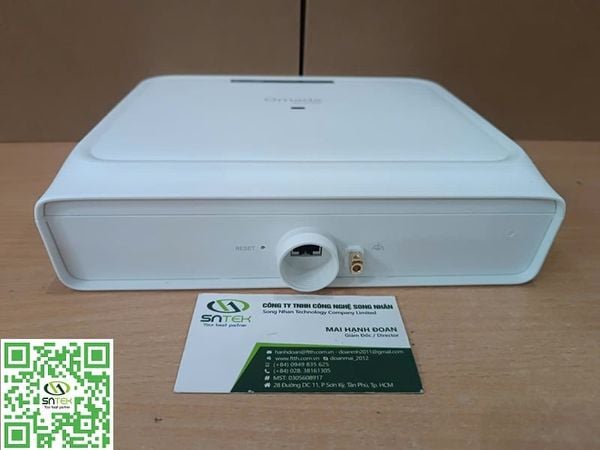

Giao diện

1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)

Nút

Reset

Bộ cấp nguồn

• 802.3at PoE
• 48V Passive PoE

Điện năng tiêu thụ

• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)

Kích thước ( R x D x C )

8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm)

Ăng ten

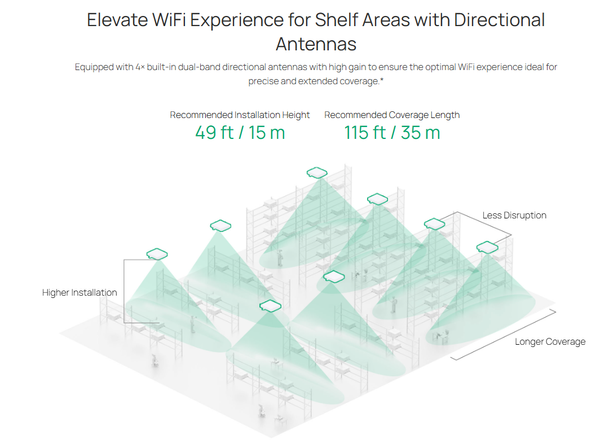

Built-in Directional Antennas:
• 2.4 GHz: 2× 8 dBi
• 5 GHz: 2× 10 dBi
Beamwidth: 120° Horizontal; 30° Vertical

Bluetooth

Yes

Weatherproof Enclosure

IP68

Lắp

Optional bracket accessory APM-100:
Supports vertical ±45° , horizontal ±45° adjustment
Note: Optional bracket accessories need to be purchased separately

TÍNH NĂNG WI-FI

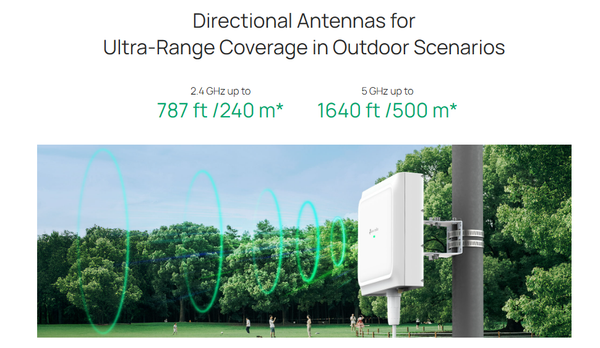

Coverage

• 2.4 GHz: 200+ m
• 5 GHz: 500+ m

Concurrent Clients

250+

Chuẩn Wi-Fi

IEEE 802.11 a/b/g/n/ac/ax

Băng tần

2.4 GHz, 5 GHz

Tốc độ tín hiệu

574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

Tính năng Wi-Fi

• 1024-QAM
• DL/UL OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
• Omada Mesh

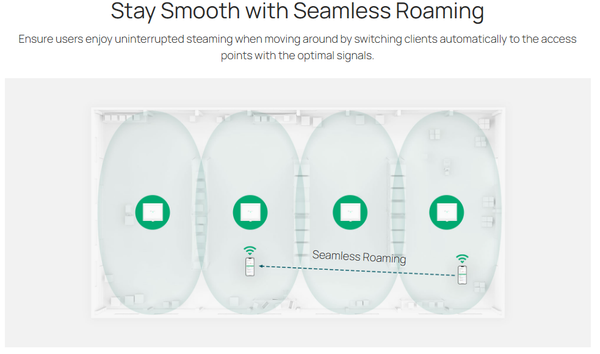

• Seamless Roaming(802.11k/v/r)
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP

Bảo mật Wi-Fi

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Công suất truyền tải

• CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
• FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

QUẢN LÝ

Omada App

Yes

Restore & Backup

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-based Controller
• Omada APP

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Quản lý kiểm soát truy cập MAC

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

SSH

Yes

Quản lý dựa trên Web

Yes

Quản lý nhiều trang Web

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

KHÁC

Chứng chỉ

CE, FCC, RoHS

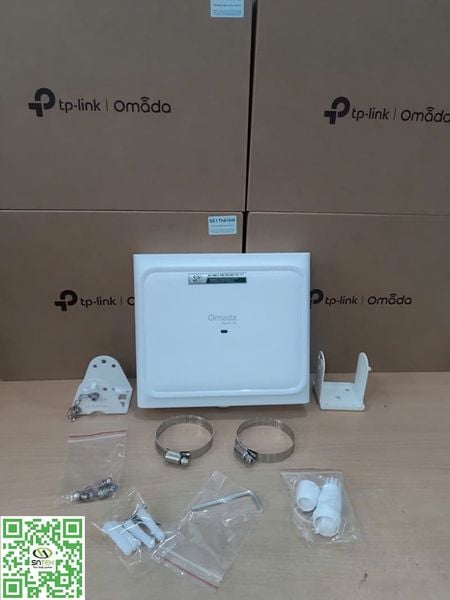

Sản phẩm bao gồm

• Access Point EAP650 D120-Outdoor
• Mounting Kits
• Installation Guide
• Waterproof Kit

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Môi trường

• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
