BỘ PHÁT WIFI 6 OUTDOOR 4G+ LTE TP-LINK ER703WP-4G

4G

Network Type

LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
00/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41

SIM Type

1× Nano SIM Card

Frequency

• Downlink: 300 Mbps;
• Uplink: 50 Mbps

SECURITY

DPI

Application control via DPI / Updated app library

Access Control

Source/Destination IP Based Access Control

Filtering

• Web Group Filtering
• URL Filtering
• Web Security

ARP Inspection

• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

Interface

• 3 Gigabit WAN/LAN Ports

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Button

Reset Button

Power Supply

802.3at/bt PoE; 12VDC / 2A Power Adapter

Wi-Fi Frequency & Signal Rate

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

Flash

256 MB NAND

DRAM

512 MB DDR4

LED

4G Signal, WLAN, WAN/LAN, SYS

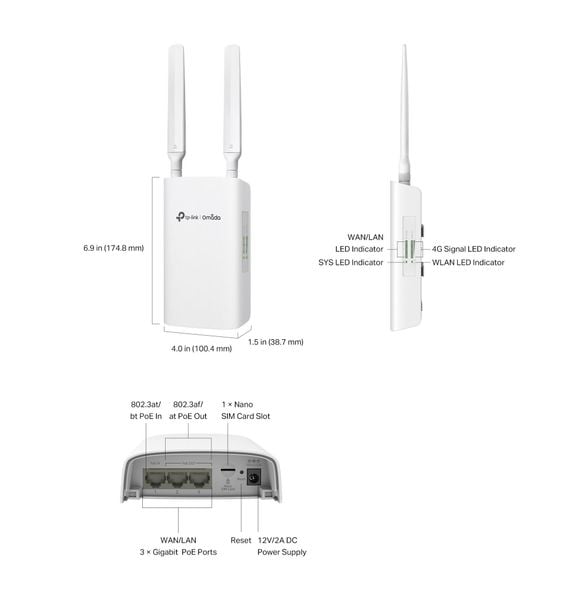

Dimensions ( W x D x H )

6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)

Antenna

• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas

Mounting

Pole/Wall-Mounting

Max. Power Consumption

POE:62.9W max @ 220V/50Hz 25℃
DC: 16.6W max @ 220V/50Hz 25℃

PERFORMANCE

DPI Throughput

• TCP: 1131 Mbps
• UDP: 974 Mbps

GRE

• Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps

WireGuard VPN

462.8Mbps

Concurrent Session

120,000

New Sessions /Second

3,800

NAT (Static IP)

945.9Mbps / 950.2Mbps

NAT(DHCP)

947.3Mbps / 949.4Mbps

NAT(PPPoE)

916.9Mbps / 946.3Mbps

NAT (L2TP)

878.9Mbps / 778.9Mbps

NAT (PPTP)

852.2Mbps / 775.9Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps

OpenVPN

85.1Mbps

L2TP VPN Throughput

• Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps

PPTP VPN Throughput

• Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps

SSL VPN Throughput

86.6Mbps

66 Byte Packet Forwarding Rate

1,453,489 pps / 1,453,489 pps

1,518 Byte Packet forwarding rate

81275 pps / 81275 pps

WIRELESS FEATURES

Advanced Features

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)

Guest Network

Support

BASIC FUNCTIONS

WAN Connection Type

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone

Modify WAN Address

DHCP

• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP

SMS

Receive / Send SMS

IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features

Access Control

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing
• Policy Routing
• RIP
• OSPF

Bandwidth Control

IP-Based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Limit

IP-Based Session Limit

VPN

GRE

Only in Standalone Mode

SSL VPN

50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode

WireGuard VPN

• 20 Tunnels

AUTHENTICATION

Web Authentication

• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP

Management Features

Omada App

Yes.

Centralized Management

• Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access

Yes.

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support

Management Features

• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

Certification

CE, FCC, RoHS

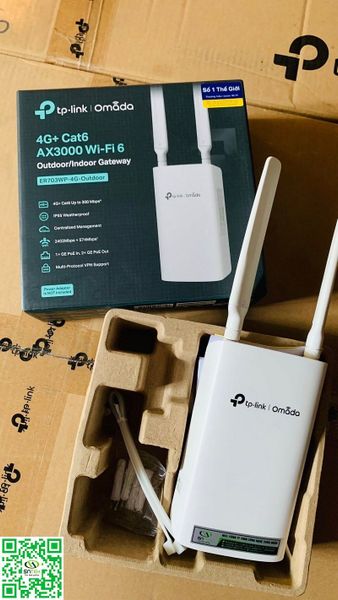

Package Content

• ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
