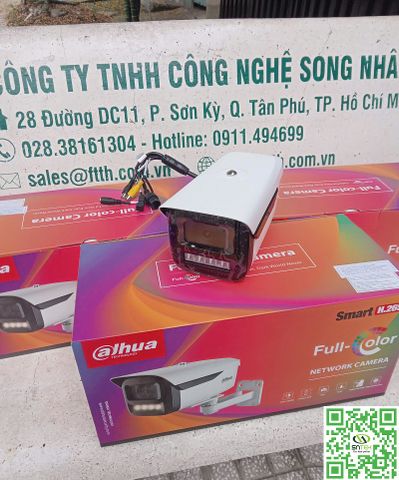

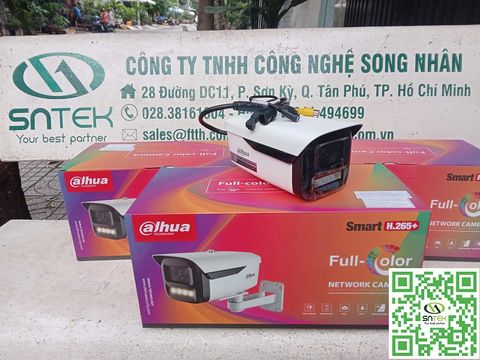

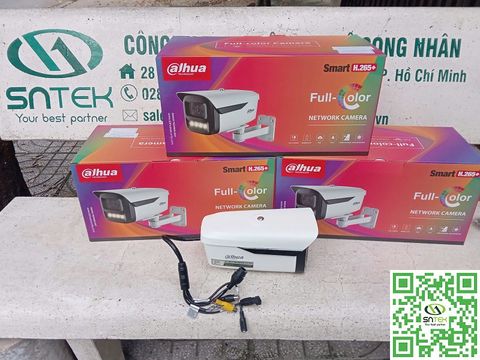

CAMERA AN NINH IP DAHUA DH-IPC-HFW2449M-AS-LED-B
Đặc điểm nổi bật của Camera DH-IPC-HFW2449M-AS-LED-B:
- Camera có độ phân giải 4MP (2688 x 1520 pixels)
- Sử dụng cảm biến hình ảnh CMOS 1/2.9 inch tăng khả năng thu nhận ánh sáng đem đến chất lượng hình ảnh cao ngay cả khi trời tối
- Camera có ống kính 2.8mm hoặc 3.6mm tùy chọn, cung cấp góc nhìn rộng và phù hợp cho việc giám sát các khu vực như sân bãi, hành lang, và lối vào
- Full-Color (Quan sát màu ban đêm): LED tích hợp cho phép ghi hình màu trong điều kiện ánh sáng yếu, cung cấp hình ảnh rõ nét và đầy đủ màu sắc ngay cả vào ban đêm
- Hỗ trợ chuẩn nén H.265+
- Hỗ trợ chuẩn chống nước, bụi IP67
- Tầm xa quan sát ban đêm hồng ngoại lên đến 40m
- Chống ngược sáng WDR (120dB) giảm hiện tượng bị lóa mất chi tiết ở một vài vị trí khuất, ánh sáng yếu trên màn hình
- Âm thanh hai chiều tích hợp loa và micro
- Hỗ trợ các tính năng phân tích thông minh (AI) như phát hiện chuyển động, phát hiện xâm nhập và khu vực cấm
Thông số kỹ thuật chi tiết Camera DH-IPC-HFW2449M-AS-LED-B:
Camera | |
Image Sensor | 1/2.9 inch CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.005 lux@F1.0 |
S/N Ratio | >56 dB |
Illumination Distance | Up to 50 m (164.04 ft) (Warm light) |
Illuminator On/Off Control | Auto; Manual |
Illuminator Number | 4 (Warm light) |
Lens | |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 3.6 mm; 6 mm |
Max. Aperture | F1.0 |
Field of View | H: 82°; V: 43°; D: 94° H: 55°; V: 30°; D: 63° |
Iris Control | Fixed |
Close Focus Distance | 2.2 m; 4.5m |
Intelligence | |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps )/2560 × 1440@ (1–25/30 fps) |
Stream Capability | 2 streams |
Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps |
Day/Night | Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; Manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Smart Illumination | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas |
Audio | |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; G.726; PCM |
Alarm | |
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
User/Host | 20 (Total bandwidth: 48 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE; Chrome; Firefox |
Management Software | Smart PSS Lite;DSS;DMSS |
Mobile Client | iOS; Android |
Cyber Security | Configuration encryption;trusted execution;Digest;security logs;WSSE;account lockout;syslog;video encryption;802.1x;IP/MAC filtering;HTTPS;trusted upgrade;trusted boot;firmware encryption;generation and importing of X.509 certification |
Certification | |
Certifications | CE-LVD: EN62368-1; |
Port | |
Audio Input | 1 channel (RCA port) |
Audio Output | 1 channel (RCA port) |
Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC |
Alarm Output | 2 channels out: wet contact, 300mA 12V DC |
Power | |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 2.7 W (12 VDC); 3.6 W (PoE) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidit | ≤95% |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% |
Protection | IP67 |
Structure | |
Casing Material | Metal + plastic |
Product Dimensions (L × W × H) | 201.0 mm × 103.8 mm × 97.8 mm |
Net Weight | 0.71 kg |
