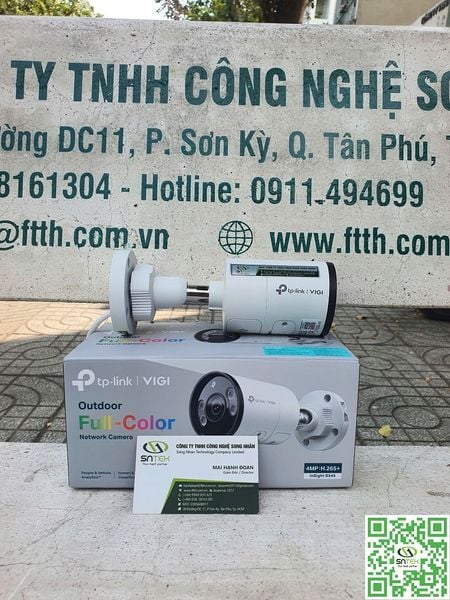

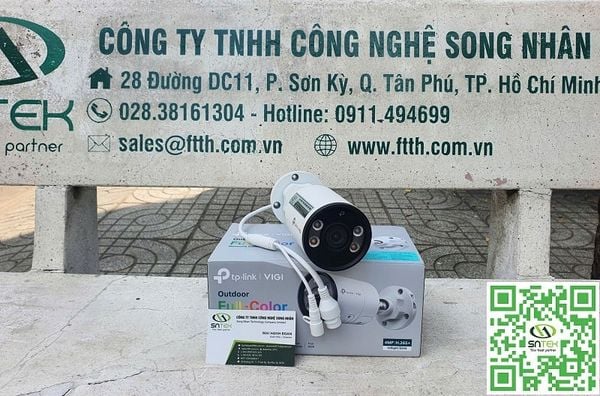

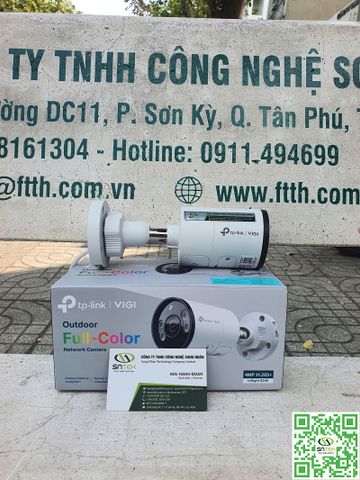

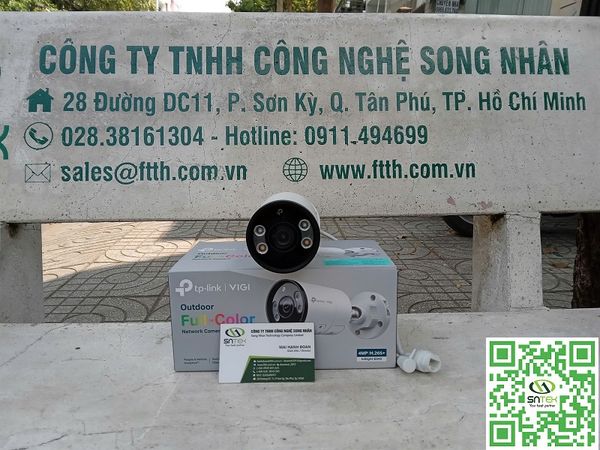

CAMERA IP THÂN NGOÀI TRỜI TP LINK VIGI INSIGHT S345

Camera Insight S345

Image Sensor

1/2.7” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Illuminator

IR Range: 30m
White Led: 30m

Angle Adjustment (Manual)

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

Type

Fixed Focal Lens

Focal Length

6mm

Aperture

F1.6

FOV

Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°

Lens Mount

M12*P 0.5

Video

Max. Resolution

2688 x 1520

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264


Image Settings

• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF

Yes

API

ONVIF Profile S/T/G

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Alarm and Event Management

Smart Event

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection

Basic Event

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception (Illegal Login)

Alarm Linkage

• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing

Output Notification

Message Push

Deep Learning Function

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier

Interfaces

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Reset Button

Yes

Power

DC Power Port

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

General

Operating Temperature

-30~60 °C

Storage Temperature

-40~60 °C

Power Supply

12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 10.7 W

Material

Metal

Protection

IP67

Weight

0.525 Kg

Dimensions (L x W x H)

184 × 74 × 74 mm
