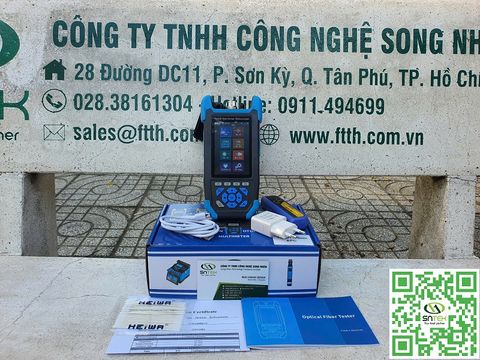

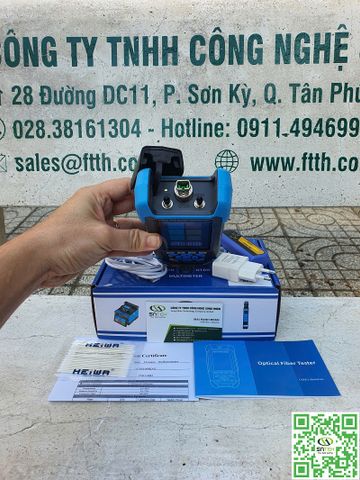

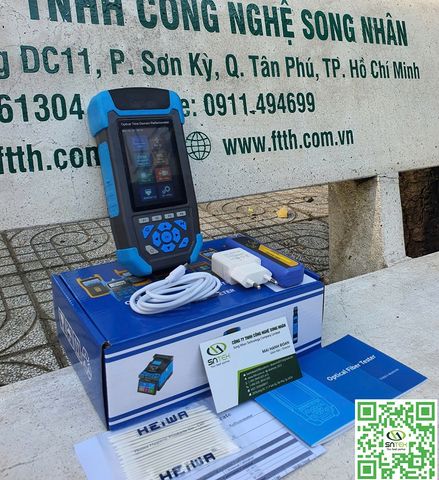

MÁY ĐO CẦM TAY OTDR-PON/XGSPON OT6109RD-E

Model                                                                             OT6109RD-E

Wavelength

1310/1550nm

1610mn online

Fiber Type

G.652 SM Fiber

Dynamic Range

22dB/20dB

24dB

Event Dead Zone

8m

ATT Dead Zone

15m

Test Range

10m~60km

Pulse Width

5~10000ns

Ranging Accuracy

±（1m+Sampling Interval +0.005％×Test Distance）

Loss Accuracy

±0.05dB/dB

Sampling Points

16~86k

Sampling Resolution

0.7m

Reflection Accuracy

±3dB

Data Storage

Internal:≥600;External:TF Card

Laser Safety Level

Class 2 level

File Format

SOR Standard File Format

Connector

FC/UPC（Interchangeable SC、ST）

Drop test

15m

Water test

Yes

Online Detection-APD Effective  Protection

Yes

Automatic Test

One-click operation

 SOR file batch processing

Yes

OPM

Wave Range

800nm~1700nm

Interface Type

Universal FC/SC/ST

Test Range

-50～+26dBm

Uncertainty

±5%

Frequency Identification

CW

Calibration Wavelength

850/1270/1300/1310/1490/1550/1577/1625nm

OLS

LD Type

FP-LD

Output Wavelength

1310/1550nm

1610nm

Output Power

≥-5dBm

Modulation Frequency

CW/270/1k/2kHz

Stability

CW,±0.5dB/15min（Test after15mins of preheating）

Connector

FC/APC(Interchangeable SC,ST)

VFL

Work Wavelength

650nm±20nm

Output Power

≥10mW

Mode

CW/1Hz/2Hz

Connector

FC/SC/ST

RJ45 Sequence

Other Parameters

Screen

3.5” Color LCD

Data Interface

Micro USB

External Storage

TF Card

Power Supply

Polymer Li-battery:3.7V,4000mAh

Power Adapter: 5VDC,1A

Battery Life

Standby＞20h; Measuring Time＞12h

Operating Temperature

-10℃～+50℃

Storage Temperature

-40℃～+70℃

Relative Humidity

0～95％Non Condensing

Weight

≤400g

Dimension

173×85×42mm

Functions：OTDR/Event map/OPM/LS/VFL/IL/RJ45 Sequence/Lighting
