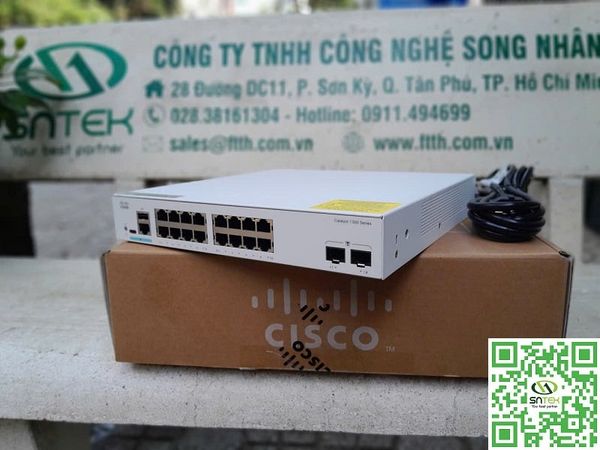

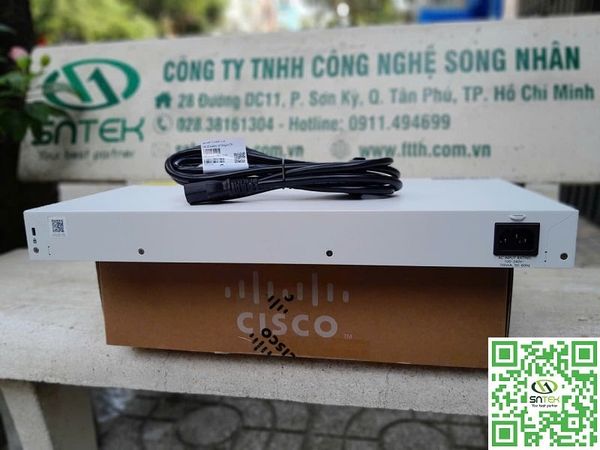

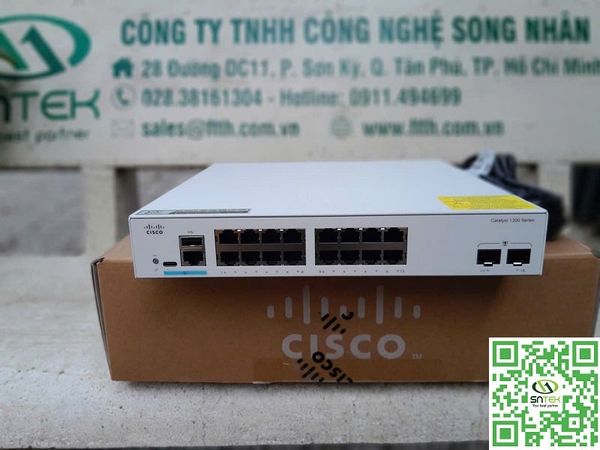

THIẾT BỊ CHUYỂN MẠCH SWITCH CISCO C1300-16T-2G

Datasheet Switch Cisco C1300-16T-2G

Product Specifications

C1300-16T-2G

16x 10/100/1000 ports, 2x Gigabit SFP, Rack-mountable

Total system ports

18x Gigabit Ethernet

RJ-45 ports

16x Gigabit Ethernet

SFP ports

2x SFP

Console port

Cisco standard RJ-45 console port and USB Type C port

USB port

USB Type C port on the front panel of the switch for easy file and image management as well as console port

PoE

No

Performance

Switching capacity in Gigabits per second (Gbps)

36.0Gbps

Capacity in Millions of Packets Per Second (mpps) (64-byte packets)

26.78Mpps

Hardware

CPU

ARM dual-core at 1.4 GHz

DRAM

1 GB DDR4

Flash

512 MB

Packet buffer

1.5 MB

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

System power consumption

110V=18.63W
220V=18.37W

Heat dissipation (BTU/hr)

64.46

Feature

Spanning Tree Protocol

Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

Support for up to 4093 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
Customer premises equipment (CPE) VLAN
Auto surveillance VLAN (ASV)

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices

Multicast TV VLAN

Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)

IPv4 routing

Wire-speed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces

IPv6 routing

Wire-speed routing of IPv6 packets

Layer 3 interface

Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface

Routing Information Protocol (RIP) v2

Support for RIP v2 for dynamic routing

Policy-Based Routing (PBR)

Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)

DHCP server

Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes
Support for DHCP options

Environmental

Unit dimensions (W x H x D)

268 x 272 x 44 mm (10.56 x 10.69 x 1.73 in)

Unit weight

1.78 kg (3.92 lb)

Power

100-240V 50-60 Hz, internal

Certification

UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Operating temperature

23° to 122°F (-5° to 50°C)

Storage temperature

-13° to 158°F (-25° to 70°C)

Operating humidity

10% to 90%, relative, noncondensing

Storage humidity

10% to 90%, relative, noncondensing

Fan (number)

Fanless

MTBF at 25°C (hours)

706,983
