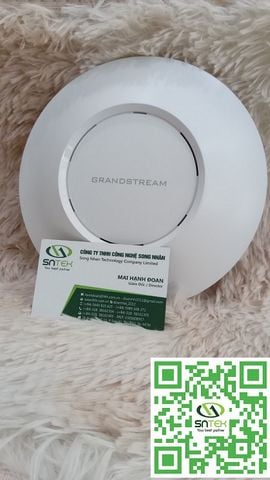

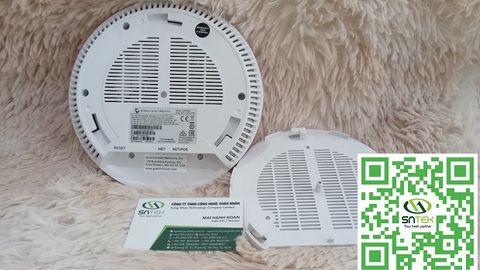

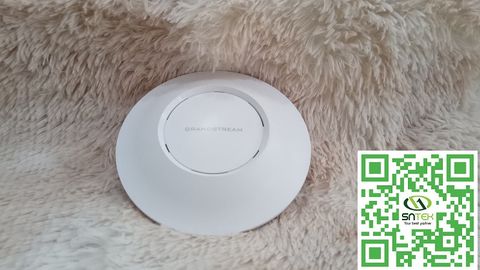

BỘ PHÁT WIFI GRANDSTREAM -GWN7605

GWN7605 Datasheet

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac (Wave-2)

Antennas

2 dual band internal antennas
2.4GHz, gain 3dBi
5 GHz, gain 4dBi

Wi-Fi Data Rates

IEEE 802.11ac: 6.5 Mbps to 867 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps;
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between
devices, radio interference in the operating environment and mix of devices in the network

Frequency Bands

2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5180-5825 MHz

Channel Bandwidth

2.4G: 20 and 40 MHz
5G: 20,40 and 80 MHz

Wi-Fi and System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default
password per device

MIMO

2x2:2 2.4GHz (MIMO)
2x2:2 5GHz (MU-MIMO)

Coverage Range

Up to 165 meters
*coverage range can vary based on environment

Maximum TX Power

2.4G:24dBm
5G:22dBm
*Maximum power varies by country, frequency band and MCS rate

Receiver Sensitivity

2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

SSIDs

16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)

Concurrent Clients

100+

Network Interfaces

2 x autosensing 10/100/1000 Base-T Ethernet Ports

Auxiliary Ports

1 x Reset Pinhole, 1 x Kensington lock

Mounting

Indoor wall or ceiling mount, kits included

LEDs

3 x tri-color LED for device tracking and status indication

Network Protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy Efficiency

PoE 802.3af/ 802.3at;
Maximum Power Consumption:10.16W

Environmental

Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing

Physical

Unit Dimension: 180.4mmx180.4mmx40.8mm; Unit Weight: 388.2g
Entire Package Dimension: 228.5x220x79mm; Entire Package Weight: 719.3g

Package Content

GWN7605 802.11ac Wireless AP, Mounting Kits, Quick Start Guide

Compliance

FCC, CE, RCM, IC
