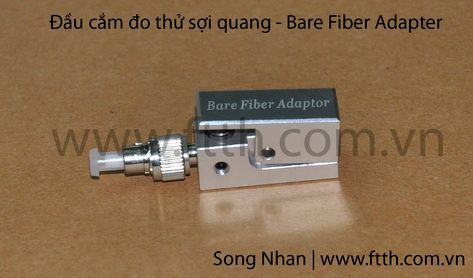

ĐẦU CẮM ĐO THỬ SỢI QUANG

Nhà cung cấp: Cung cấp bởi SNTek
Giá gốc Liên Hệ



← Sản phẩm trước Sản phẩm sau →

Mô tả sản phẩm

Bare fiber adapters are used as the medium to link the bare optical fiber to fiber optic equipment. The bare fiber optic adapters have the bare optical fiber inside on one side; the other side of the adapter is a connector that can plug into the equipment. We supply SC, FC and ST bare fiber adapters, they are used to quickly and easily terminate the fiber to the equipment.

Bare fiber adapter applications:
1) For fast and temporary fiber optic connections in communication system
2) Fiber optic measurement in laboratory
3) Production line of fiber optic devices
4) Temporarily connactorizes bare fiber
5) Testing bare fiber, fiber on the reel, fiber before and after installation
6) Temporary connections to OTDRs, Power Meters, Talk sets, Demo Equipment and Dark Fiber
7) Other maintenance, restoration and installation jobs

Bare fiber optic adapter features:
1) Fits accordingly FC, ST ,SC adapters
2) Lightest weight and very compact size
3) Specially designed mechanism minimizes insertion loss
4) Highest repeatability
5) User friendly -- easy to insert, remove and reload fiber

Specifications

TypeFC/PCSC/PCST/PCLC/PC
Ferrule ID125-127um
Ferrule OD2.499mm1.249mm
Insertion loss0.3dB
Repeatability0.3dB
Tensile force100g
Optical fiber typeSM/MM
Plug times1.000 times
Operating temperature-40 ~ +80
