THIẾT BỊ POLYCOM REALPRESENSE GROUP 310

Mô tả

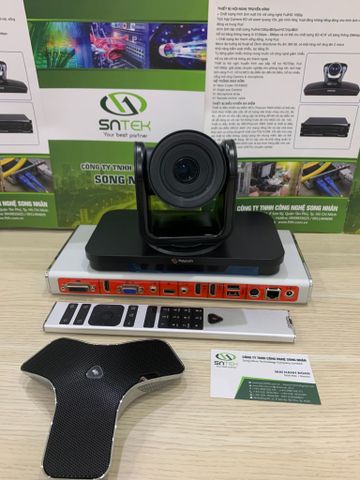

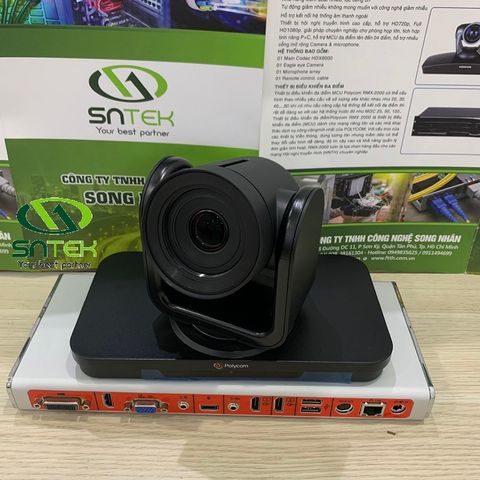

Polycom Group 310

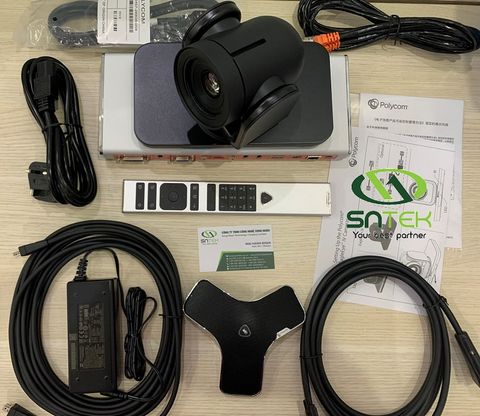

Thiết bị bao gồm

– Polycom EagleEye IV Camera
– Codec
– Microphone Array
– Điều khiển từ xa
– Adapter nguồn UK - Type G, BSS1363
– Cáp
– Hướng dẫn nhanh

Tính năng chính

Kết nối Point-to-point

Hỗ trợ kết nối điểm – điểm

Data/Content Sharing

Built-in

Băng thông

Up 03 Mbps

Độ phân giải

Hỗ trợ độ phân giải lên đến Full HD

Camera

Type

Pan/Tilt/Zoom

Zoom

4x optical

Pan

±100°

Tilt

±25°

Field of View

65°

Sensor

1/2.33″ CMOS

Preset

100 positions

Độ phân giải

Video

- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- 4SIF/4CIF, 60 fps from 512 Kbps
- 4SIF/4CIF, 30 fps from 128 Kbps
- SIF (352 x 240), CIF (352 x 288) from 64 Kbps
- QSIF (176 x 120), QCIF (176 x 144) from 64 Kbps
- w288p from 128 Kbps
- w448p from 384 Kbps
- w576p from 512 Kbps

Content Sharing

• Input
– WUXGA (1920 x 1200)
– HD (1920 x 1080i)
– HD (1920 x 1080p)
– WSXGA+ (1680 x 1050)
– UXGA (1600 x 1200)
– SXGA (1280 x 1024)
– WXGA (1280 x 768)(1024 x 768)
– SVGA (800 x 600)
• Output
– WUXGA (1920 x 1200)
– HD (1920 x 1080)
– WSXGA+ (1680 x 1050)
– SXGA+ (1400 x 1050)
– SXGA (1280 x 1024)
– HD (1280 x 720)
– XGA (1024 x 768)
– VGA (640 x 480)
Series allows you to leverage previous investments in Polycom technology, including select cameras, microphones,and UC innovations such as Polycom® EagleEye™ Director and Polycom
• Content Frame Rate
– 5–60 fps (up to 1080p resolution at 60 fps)
• Content Sharing: People+Content™ and People+Content™ IP
Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
• H.239/Polycom®People+Content™
• H.263 & H.264 video error concealment

Âm thanh

Chuẩn âm thanh

– G.711, G.722, G.722.1, G.728, G.722.1C

Tính năng âm thanh

– Tự động điều chỉnh âm lượng (AGC)
– Giảm độ ồn tối đa
– Triệt tiếng vọng (AEC)

Cổng giao tiếp

Video inputs

- 1 x EagleEye HD camera (HDCI)
- 1 x HDMI 1.3
- 1 x VGA

Video outputs

- 2 x HDMI 1.3
– One HDMI output enabled standard, second output enabled with optional license key

Audio inputs

• 1 x RealPresence Group microphone array (supporting a total of 2 microphones)
• 1 x HDCI (camera)

Audio outputs

• 1 x HDMI
• 1 x 3.5mm stereo line-out

Network Port

10BASE-T/100BASE-TX x 1

Others

• 2 x USB 2.0
• 1 x RS-232 Mini-DIN 8-Pin

Network

Protocols

• IPv4 and IPv6 support
• 2 x 10/100/1G Ethernet Switch
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps

QoS (Quality of Service)

Polycom ® Lost Packet Recovery™ (LPR™) technology

Other Network Features

– API support via Telnet
– Wake-on-LAN (WOL) support

Bảo mật

Giao thức

• US DoD UC APL Certified
• Media Encryption (H.323, SIP): AES-128, AES-256
• Authenticated access to admin menus,web interface, and telnet API
• FIPS 140-2 Validated Cryptography (Validation Certificate #1747)
• PKI/Certificate Management:
– SSL 3.0, TLS 1.0, 1.1, 1.2
– Self-signed and CA-signed certificate support
– CRL and OCSP-based certificate revocation checking
• Network intrusion detection system
• Local account password policy configuration
• Security profiles
• Web UI/SNMP Whitelists
• Local account and login port lockout

Tính năng mở rộng

Công nghệ độc quyền Polycom

Polycom ® Constant Clarity ™ technology
• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Live music mode
• Instant adaptation echo cancellation
• Audio error concealment
• Polycom ® Siren™ Lost Packet Recovery™  (LPR™) technology
• Polycom®StereoSurround™ technology

Tùy chọn

• Polycom ® Touch Control
• Polycom® EagleEye™ Director withEagleEye III cameras
• Polycom UC Board™
• Polycom®SoundStation® IP 7000 conference phone integration
• Polycom®SoundStructure®integration through a digital interface
- Software options
• Lync 2010 and 2013 interoperability
• TIP interoperability
• 1080p license, providing up to 1080p60 for people and content

Kích thước, trọng lượng

Kích thước

11.3” H x 1.2” W x 4.8” D

Trọng lượng

2.35 lb
